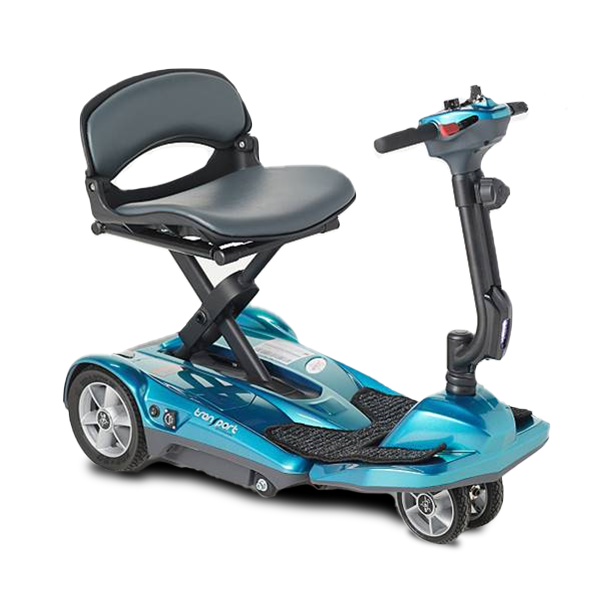

The EV Rider Transport AF+ scooter automatically folds up with your handheld remote. With the push of a button, it automatically folds in seconds! Approved for airline travel, the S19AF is equipped with a hi-capacity lithium battery and weighs just 49 lbs making it perfect for travel on planes, trains, and cruise ships. Due to its ultra-tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height-adjustable tiller, LED headlight, and dual hand two-way throttle control. It can be stored virtually anywhere and easily fits in the trunk of most automobiles. Just press the button and watch this innovative scooter unfold!
Overall Length | 33.5″ in / 85cm |
Overall Width | 16.5″ in / 42 cm |
Overall Height – at Maximum Tiller Height | 33.5″ in / 85cm |
Overall Height – at Minimum Tiller Height | 30″ in / 76cm |
Legroom – Floorboard Length x Width | 17″ in / 43 cm |
Deck Height – Floorboard to Floor | 4.8″ in / 12 cm |
Ground Clearance | 1.4″ / 3.6 cm |
Turning Radius | 31″ in / 79 cm |
Folded Overall Length | 30” / 76 cm |
Folded Overall Width | 16.5″ / 42cm |
Folded Overall Height | 17.7” / 45 cm |
Weight with 25.2V 10.5Ah Li Ion Battery | 49 lbs / 22 kgs |
Seat Type | Folding Mobility Seat |
Seat – Width & Depth & Height | 15″ W x 12″ Depth x 9″H //38 cm x 30.5 cm x 23 cm |
Seat – Cushion Thickness | 1″ in / 25 cm |
Seat Height – Cushion to Deck | 15″ in / 38 cm |
Seat Height – Cushion to Floor | 19.7″ in / 50 cm |
Tire Type | Solid Tires |
Rim Type Rear | Industrial Plastic |
Rim Type Front | Industrial Plastic |
OEM Spec Rear | N/A |
Outside Diameter Rear | 8″ / 20 cm |
Tire Width Rear | 2″ / 5 cm |
OEM Spec Front | N/A |
Outside Diameter Front | 6” / 15 cm |
Tire Width Front | 1.4″ / 3.5cm |
Battery Type | 25.2V 10.05Ah Lithium Ion x1 (included) |
Brake System | Electromagnetic |
Climbing Angle – Maximum Recommended | 3 degree |
Charger Type | Off Board Li-Ion Charger 2.5 Amp 24 VDC, input: 110/240 Vac |
Charging Time | 4 – 6 hrs |
Controller | Dynamic R‐Series 50A |
Driving Range | Up to 10 miles* |
Load Capacity | 250 Lbs / 115 kg |
Motor & Drive Location | 180 watt 24 volt |
*Speed – Maximum | up to 3.8 mph * |
Colors | Blue, Copper, Burgundy, Silver |
Tiller Type | T-Shape Type |
Throttle Control Type | Pot Meter |
Anti-Tipper Wheels-Rear | Rear Casters – Standard |
